Push to talk dynamic microphone with lock balanced
Push to talk dynamic microphone with lock feature, balanced output for paging applications. View PDF
$126.00
DSM2000 / DSM2010 Description

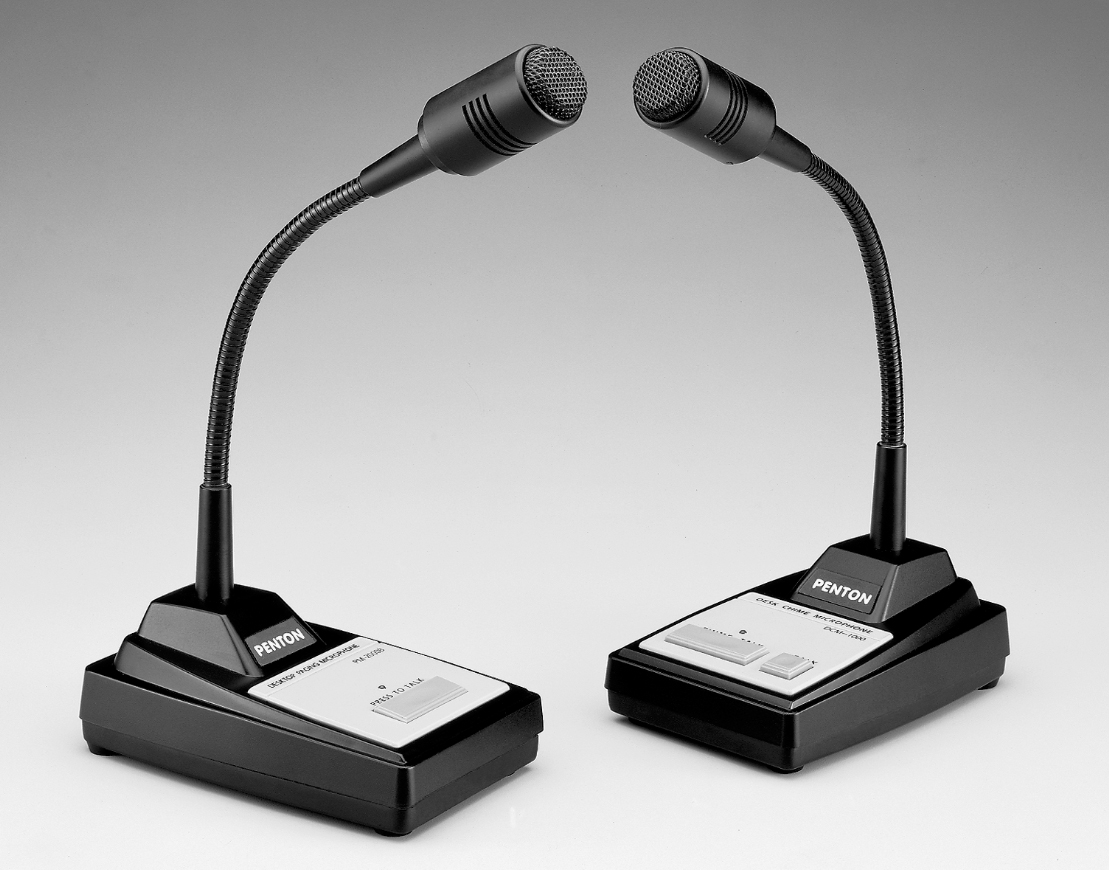

The D Series from Penton Audio USA are desktop paging microphones. Each has a very directional, super-cardioid pickup pattern helpful in allowing the unit to be used at normal distances in critical gain-before-feedback situations.
Model DSM2010 (S for switch) has a momentary Press-to-Talk switch. The DSM2000 includes that P-T-T switch along with a smaller lock-on switch.
Each model has a dynamic, moving coil, low-impediance capsule with neodymium magnet mounted inside a turned aluminum case. The capsule is mounted on a thin adjustable mini gooseneck, which in turn is mounted on a zinc diecast base with stylish ABS cover. All D Series microphones have a 5-conductor cable that is nearly 10′ long. The cable is connected at one end to the base with the other end stripped and tinned for customer preferred and supplied connector.
DSM2000 / DSM2010 Specifications
| CARTRIDGE TYPE: | Dynamic Moving Coil |
| POLAR PATTERN: | Super Cardioid |
| MAGNET MATERIAL: | Neodymium |
| IMPEDIANCE: | 600 Ohms |
| FREQUENCY RESPONSE: | 100-12,000 Hz |
| SENSATIVITY: | -52 dB (0 dB=1mw per 10 microbars) |
| OPEN CIRCUIT VOLTAGE: | -72 dB (0 dB=1 volt per microbar) |
| SWITCH TYPE: | Micro |
| GOOSENECK THICKNESS: | 2 mm |
| SWITCH FUNCTIONS | DSM2000: P-T-T & Lock On DSM2010: P-T-T only |
| PHASING: | Positive Pressure on the Diaphragm causes Positive Voltage on Red Wire |
| CABLE, FT (M): | 9.84 (3) Five-Conductor Shielded |
| APPROVALS: | CE |
| MATERIALS: | Base: Zinc Die Cast Base Cover: ABS Gooseneck: Steel Microphone Case: Aluminum |
| FINISH: | Matte Black with White Trim |
| DIMENSIONS, INCH (MM): | 5.63 x 3.47 x 13 (143 x 88 x 329) |
| NET WEIGHT LB (GS): | DSM2000: 1.1 (490) DSM2010: 1.1 (490) |
