Drop-In Ceiling Speaker 2ft x 2ft (2 per box)

Drop-in ceiling speaker tile, 2ft x 2ft size, sold as 2 units per box. Perfect for suspended ceiling installations. View PDF

$195.00

SKU: CSD2X2 Categories: , , Tags: , , ,

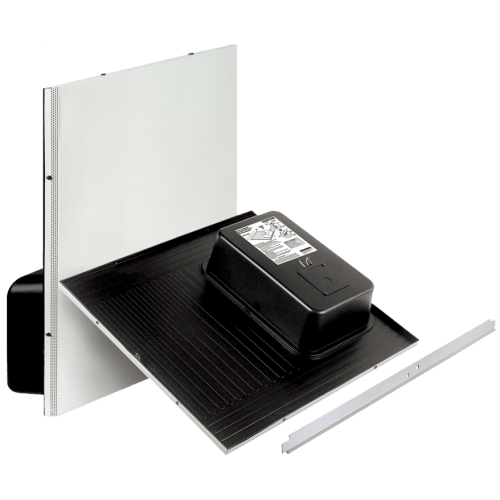

Models CSD2X2 and CSD2X2VR – Drop-In Ceiling Speakers

Bogen’s CSD2x2 and CSD2X2VR Drop-In Ceiling Speakers are full-range speakers that allow fast and simple installation, which saves time, effort, and cost. The CSD2X2/VR is the perfect ceiling speaker whether your ceiling grid is 2′ x 2′ or 2′ x 4′. Just make one simple cut to the ceiling tile, lay the support rail crossbar (included) across the ceiling grid, and drop the speaker into place.

  • 2ft. X 2ft. with back can enclosure
  • 4-watt, 70V/25V transformer
  • 4, 2, 1, 1/2, & 1/4-watt tap settings; selectable by rotary switch
  • Fully enclosed, industrial grade steel construction
  • 8″ main cone with secondary high-frequency cone; 10 oz. magnet weight
  • Plenum-rated — meets the requirements of UL standard 2043 for smoke and heat release
  • Front-mounted, recessed volume control versions available (VR)
  • Available in Off-White
  • Listed to UL Standard 60065 for U.S. & Canada; and UL Standard 1480 for U.S.



*CSD2X2VR is not recommended for Sound Masking

Full Spec Sheets, User Manuals, Brochures
